Oil Fields Completion Components and Accessories

With a strong focus on technology, we offer a wide variety of oil fields completion components and Accessories for API 5CT / API 7-1 and API 6A requirements.

Our components will enable your operators to improve the performance of the reservoir while achieving higher extraction ratios, effectively cutting down your capital expenditure, saving time, and increasing oil and gas production.

Since every well construction project requires a different configuration of completion components,

we offer a wide selection of Liner crossovers, couplings, Pub joints, Hanger body, Mandrel, landing collar, Setting adapter, TSN body, TBR-PBR & Slick joints which are used to connect different tubular sections like a casing or a drill pipe. Among many completion components, we also produce mule shoes which are essential for guiding tubing into the packer seal bore. What's more, Accessories Bow spring, Slip arm, Aluminium inserts, Backup ring, Lock ring, Anti rotation lug key, Alum Bronze ball, Aluminium ball, Chrome steel ball & Phenolic ball.

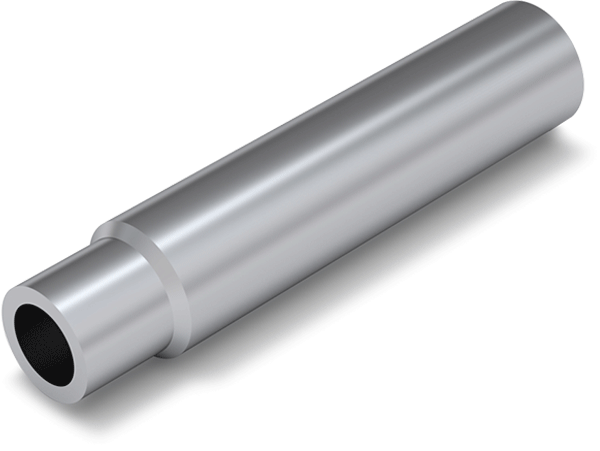

CROSSOVERS & COUPLINGS

Used as an adapter to connect tubular sections such as casing, tubing, drill pipe. It comes in different configurations for connecting different size and type of threads. Example STUB-ACME, API connections, Premium connections like VAM, VAGT, JFE Bear, Tenaris, Hunting. Capable of connecting various sizes, ensures performance and tubing integrity is maintained appropriately.

MULE SHOE / HALF MULE SHOE

Guides he tool assembly (tubing) into the packer seal bore. Having the (Half) taper allows easy insertion of tubing string into the packer bore.

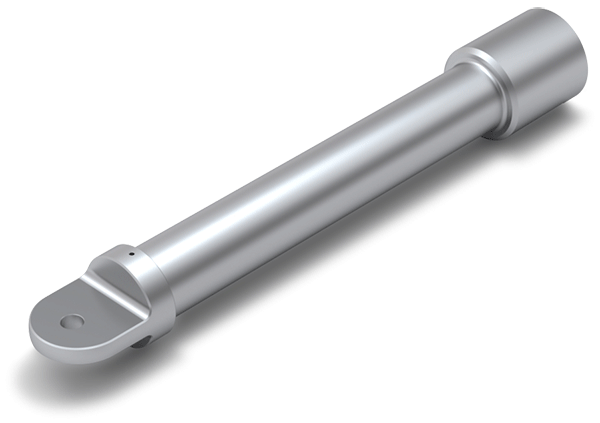

LIFTING SUB/ PAD EYE/ DOUGHNUT TYPE

A component connected to the top of a tool assembly to lift vertically. Allows the rig elevators to lift the assembled tool string safely.

SPACER SUB/ SEAL SPACER SUB

Mainly used in application to provide space between seal units.

WIRE LINE ENTRY GUIDE

Fitted on the bottom end of the string which allow easier and safe entry of tools.

FLOW COUPLING

Heavily walled component installed in areas where turbulence is expected. Flow couplings are usually installed above and below completion components, such as landing nipples, SSD, etc., to reduce the effect of turbulence.

BLAST JOINT

Placed directly facing perforations in dual completions/ straight below the tubing hanger in sand fracture situations. The wall of the tool is treated to withstand the jetting force that may result in the proximity of the perforations from incoming fluids.

BULL NOSE

During downhole operation bull nose comes with a port opening for jetting/cement pumping operation.

BULL PLUG

Used a plug at the end of the string for various operations. It has a smooth round finish making it easy for entry.

MILL-OUT EXTENSION

The tool provides a larger ID below the packer to secure the milling tool. The extensive ID is useful when a packer milling and retrieving tool is used. Provides to engage the milling and retrieving tool thereby supporting the hanging weight of the packer string.

SEAL BORE EXTENSION

Gives adequate seal bore length in order that extensive seal assemblies can accommodate tubing movement while being inside the seal bore. Facilitates and ensures proper sealing even when accommodating tubing movement.

SEAL UNIT SUB

Acts as the part of tubing string which hosts the seals which sit inside the packer seal bore. Used in multiple numbers (in unison) to provide for contingency sealing over a longer stroke length thereby accommodating for tubing movements as well.

POLISHED BORE RECEPTACLES

Along with seal assembly it provides separation function. And provides stroke movement for compensation of any tubing movements during production or well treatment.

NO GO LOCATOR

Main application been to prevent downward movement, it has a lock shoulder to lock itself.

FLUTED CENTRALIZERS

It can have dual application of centralising and drifting well bore. The fluted design allows to fluid to pass with minimum obstruction.

LANDING NIPPLE

Landing nipples are included in most completions at pre-decided intervals to enable the installation of flow-control devices, such as plugs and chokes. Large bore allows maximum flow rate. Great extent of versatility to lessen completion and production maintenance cost.

LANDING COLLAR- BALLS

The main function of a landing collar is to provide a way of setting hydraulically actuated oil tools by using a ball which lands on a ball seat based on requirements material aluminum, chrome, bronze and phenolic.

MECHANICAL SET LINER HANGER – ARM ACCESSORIES ( SLIP ARM & BOW SPRING )
